Simple Upgrade Shields Truck Bed From Elements

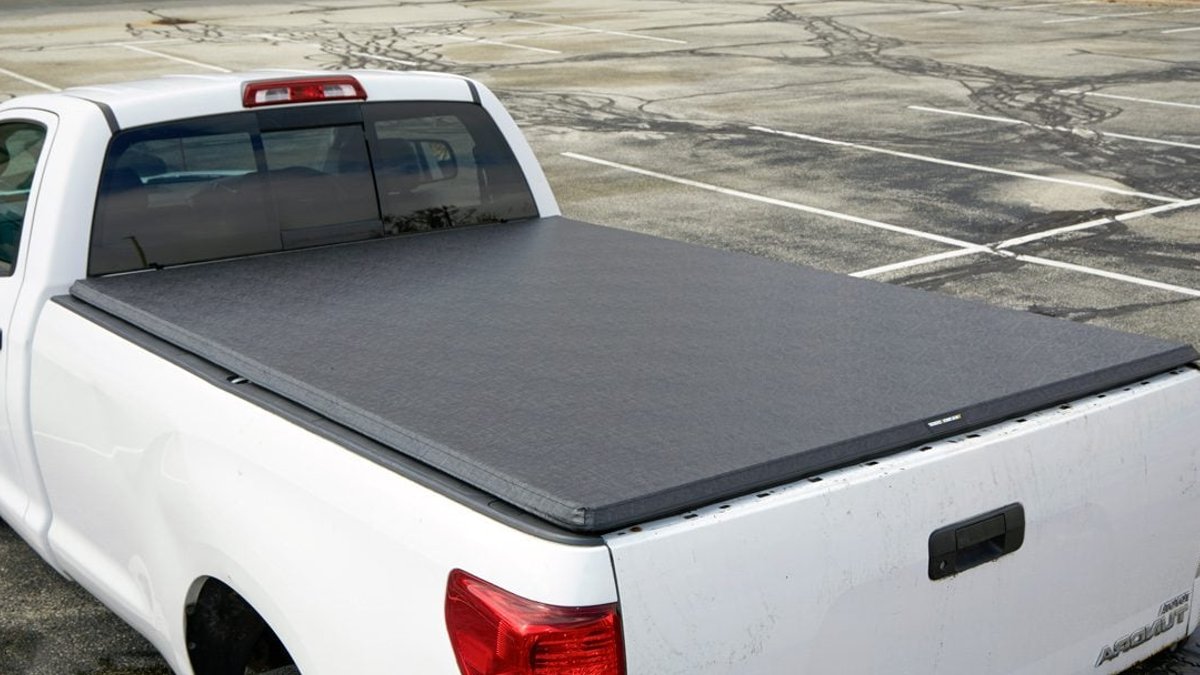

Opening your tailgate after a heavy storm to find puddles in the truck bed isn’t just annoying — it can ruin power tools, cause rust, and lead to electrical failures. A truck bed tonneau cover, installed yourself with basic tools, can keep rain, dust, and prying eyes out of your cargo.
Finding the right cover for your truck
The first step is measuring your truck bed. Exact measurements are available online by searching the year, make, and model — knowing the engine and drivetrain helps narrow things down. Or just grab a tape measure. Measure from the front bulkhead (the wall behind the cab) to the inside of the tailgate.
Check inside the bed for a pre-installed rail system along the interior sides. Manufacturers sell kits designed with or without those rails. Pick the wrong one and you will run into missing parts or compatibility issues.
Once you have the right kit, it includes the cover, side rails, corner caps, bulkhead seal, mounting clamps, and foam corner seals. You will also need a ratchet and socket set, cleaning rags, rubbing alcohol, and soap and water.
Related: Understanding The Top Benefits Of Custom Sliding Closet Doors
Installing the bulkhead seal
The bulkhead seal is a foam strip that sits between the front wall and the header bar. It stops water entry and helps level the bar with the side rails. Clean the top of that wall with soap and water or rubbing alcohol. Attach the seal at one end, work your way across, trim any excess, and press down firmly along the whole length to get a watertight bond. Remove the protective film from the top of the foam seal before moving on.
Side rails and corner seals
Side rails are usually labeled D (driver) and P (passenger) near the front corner cap. Place them on top of the bed rail with the cap at the front. Flip the rail over, find the foam pad with four detachable corner weather seals, peel and press one large corner seal into the bottom corner of the front cap.
Repeat for the other side.
Flip them back over and place them on the bed rails, making sure the weather seal sits flush and flat against the rail.
Align the inside edge of the side rail with the inside edge of the bed rail. The end of the side rail should line up with the back of the bed rail — where the inside of the tailgate sits when closed. Place three clamps on each side: one at the front, one in the middle, one at the back. Tighten them by hand for now; you will need to adjust later. Connect the clamp teeth to the channel grooves on the rail and secure the bottom under the bed rail.
Related: How to prevent your Outdoor Mattresses from Bugs Infestation and Moisture
Header bar and the cover
The header bar holds the vinyl cover assembly. Set it on top of the bulkhead seal, centered. Make sure the straps for the tonneau hang down and are not pinched between the seal and bar. Align the ends evenly on both sides. Insert the connecting corner cap of the side rail into the open cavity of the bar. You may need to loosen the clamps slightly. There is no click or locking mechanism, so visually check that the header bar is flush and square at the connection.
Repeat on the other side.
Double-check the bar is centered before moving on.
With the header bar in place, unroll the vinyl cover slowly toward the tailgate. As you unroll, align the side rails so the cover cross bars sit between them. Move the side rail clamps if needed so the support bars do not rest on them. When you reach the gate, drop the end of the attached tail rail into place until it clicks into the side rail. Leave about a 1/8-inch gap between the tail rail and side rail so it latches properly.
Tighten all six clamps with a socket wrench. Unlatch and roll up the tonneau. Tighten the end clamps near the tailgate, then the front clamps near the bulkhead, then the middle clamps. Roll the unit back out and latch it to test the fit.
Related: El Capitan properties for sale
Final sealing and wrinkle removal
Unlatch the tail rail by pulling the cables downward at both ends. Roll up to expose the bottom corners of the rail. Place the last two small foam corner seals at those corners. Align them, then latch the assembly and close the tailgate — ensuring the gate does not hit the cover. To eliminate wrinkles, start at the front, peel up the velcro edge on the side rail, pull it taut toward the gate, and press it back down. Work your way down to the tailgate.
Switch to the other side and repeat.
A tonneau cover can improve gas mileage, but the result depends on the type. Soft folding and soft roll-up versions are lightweight and reduce drag, helping you reach cruising speed easier. Heavier-duty units add significant weight and will not boost mpg.
Cleaning is straightforward: wash by hand or at a self-service car wash. Avoid automated washes with brushes — they can damage the tonneau and shift it over time. If you must use a car wash, pick a touch-free station that relies on pressurized water and detergent instead of brushes. (The word “tonneau” is pronounced tuh-NOH.)
